New Car Camber Issues?

Camber troubles today?

Rather than start at the beginning of the end, I will address this as the beginning of the beginning. I got this civic new in jan 2003 and not 18 months later I was feeling the pull of wheel to left almost all the time unless you were driving on one side of the valley of an old road. First they blame it on the tires and yes it always drove better on new tires but soon after words you'd be in the same situation or even shortly afterwords replacing front end parts and doing the alignments all over again.

 This went on for many years until I started building the 1958 Mercedes Benz, that car required me to buy the equipment and do the job myself.

So about 3 years ago I had to replace the driveshafts in the civic and I did the alignment on the civic, the strange part about doing the alignment was to get it right, you had to measure the camber while the weight of the car was on the wheels, I learned this from the Mercedes after quite a trial of effort. So when I did the civic and then put new tires on, the car drove perfect since then which lead me to believe that the shops were doing the camber with the weight of car off the wheels and once on the ground the car drives like crap.

So now to my issue with new vehicles today.

I bought a new 2019 passport this year and dang if the car drives like crap unless you have that perfect flat and straight road. So I go to check the camber only to find it also is not accurate, but when I go to find the adjustments, I find there are none, or there is no camber adjustment, this lead me back to the dealer and service manager where we already determined that they don't quite want you to do anything to increase the life of the air conditioner, it would void the warranty.

So I get to the dealer only to find my worst fears for the consumer have come true, there is no camber adjustment point and obviously the camber is not accurate. This only enhances my desire to stop buying new things like cars b/c the integrity of the industry is going in the wrong direction and rather than try to fix(sue) , or resolve, all the broken things, or issues, being made, it's easier to just give up on new and stick to the old fashion way things were made, even as primitive as some of those things were made. So just know that you do have to do the industries homework for them before you purchase their products or easily fall victim to their haste, this is what I have found going forward.












prepping for retirement?

This car, and in particular the engine , has been problem free for a good many years. The list of things not needed done is extensive, I still use the original spark plugs, all the fluids have proven successful with all the components. Nothing in the engine compartment has been replaced, the only issue is the final drive in the transmission, after 12 years trailering stuff it makes rattling sounds but has yet to fail. I will not be using it as much as I have 2 other cars to drive and maintain, not that this is the final post, but all fluid tests have proven themselves over long periods of time so this will be its primary function and purpose.



Backstabbers

Did the usual yearly oil change, and as it happened the every other year oil filter change. No problems but there was a surprize. The oil filter it's self rattled once I removed it, which never happened before. The other more important thing was that the oil pressure at  idle, which had gone up some 15 psi to 20 psi, went back down to 5 psi at idle. Now if we recall the timing of the raising of the idle pressure, it was at the exact same time we had the fuel loop cleared of contaminants and the raising was thought to be the cooling of the oil its self. It wasn't that at all, it was some cheese heads hell bent on trying to ruin a good thing. Now I know cheese heads, and they are not all that bright. Even thought they have have a lot of money and time on their hands, they prefer to create demons in the night for rather strange reasons, which is one reason why we switched to a higher quality brand of car, with security and peace of  mind included. They seemed to know about the oil pressure future problem, but I don't know what they were thinking after attempting that after the gauges were installed, if there was a real 100 psi problem, i would have spotted that, and right away corrected it promptly. Well knuckle heads will be knuckle heads, and this just proves once again, no one can be trusted when it comes to designing and servicing the car.

Changing An Oxygen Sensor On The Start Of The 7th Season Of This Blog

As I was chasing the fuel issue I decided to change the oxygen sensors also, if for nothing else but to keep the computer happy. This is another job to be done in decent weather (which I did) although it only took seconds.
You need to get a $9 & change tool to do this job, it's a 22 mm open ended socket so you can get by the wire. I'll show the top first here

It's was about $50 a piece or combined, I can't recall exactly. I thought I would struggle with removing the older one but it came out like butter, almost to easy and the top was a sinch. The bottom I had to remove a plastic just to get to it, and then it popped off easy, I had to jack the car and peel back the plastic just to see him.

You are looking at where the bottom of the manifold and the beginning of the exhaust pipe meet, he goes right in there. You have to feed this one all the way from the electrical socket to the location, and the clips don't really match up with the old ones, I just wired them on the brackets to keep them in place.
 The car is just bad fast all the time and a few years ago I beefed up the strenght of my tranny lubrication so the tranny just pegs and pulls as much as you want.

 But by now i'm in the middle of doing some A-frame bushings and waiting on the weather and timer somewhat because I need to borrow a stand up press from my  neighbor who's not home a lot in order save some headaches and time. That will be the next job, and as you will see, this car was designed with ball joints that were NOT meant to be replaced, but have now weakened slightly and after I  replace all the bushings, I will decide if this is worth the effort or not. Right now when highway is not flat, the car will want to drift because the rubber bushings have lost some of their strenght to keep the car going straight.

What The Hell Is This?

I made a trip back home last summer and a strange thing occurred. I had a front end vibration in the car at home just before I left. It would only occur one one road, and at one speed, during a cruise control drive. I went on the trip, no problems, got home and the same thing happened all over again. I chased it for a while thinking it was the A frame bushings, a job I will show  at a later date, but it wasn't. Just by happen stance, I put some 6-8 month old fuel in the tank when I was low on gas and in a hurry, and low and behold the car barely started and then just died. I got a ride and got more fuel in the tank but had no luck starting the car. Then with a turkey baster i put some a small amount gas down the throat and the car started but did not run. So I put more gas and got the tach to 4000 before it ran out of gas. So I knew it wasn't getting gas for some reason. We though about it and decided to tow it to the dealer believing he would have magic to get the car running again.

[Now here should pause and explain what really happened, rather than go to cure of the problem. I bought the car new in Avon CT having a trust in the car and 4 miles on the odometer, but being very naive about the employees at the dealership. After reviewing  all the stats, I realized that someone had added about 4 ounces of water to the gas tank, and some more to the power steering pump, I resolved the latter myself, but the former was a ticking time bomb I was not aware of, but was aware enough to keep my car away from the dealer as much as humanly possible. And this turned out to be a very good thing. Because after dropping off the car, the dealer rep told me it had a blown head gasket and high mileage and they want to replace my engine with another $900 one of their choosing. I said No no no, and asked how much to get my car back? A $100 he says. Now that got me to thinkin, cause the last time I went to the dealer for a warranty power window problem at 7 years ownership, a salesman wanted to get me into a new car. I said I have a new car and didn't need another one. What I didn't know at the time was the computer was able to sense a temp differential indicating water in the fuel line (and the resultant increase in operating temp at that point of interest), and for some reason needed to get me into another car, rather than talk about the solutions to rid the car of contaminated fuel.
    When I got to the dealership the rep said they pulled a spark plug, and there was fluid in the cylinder and it should be dry.  I told him that was supposed to be that way because I lubricate from the inside of the motor also, and that was what his head mechanic had seen and reported. I hooked the car up at no charge and we agreed to disagree.]

  So now I need an actual cure and so I let the local tow man take a crack at it. The problem was a designer one, there is a fuel loop right around the point of injection which, if contaminated, will slowly prevent the fuel from entering the injectors, even a small amount of contaminant will go straight to the motor plus I had the additional water added over time from regular gas up's. Back in the cold winters day we put dry gas in the tank to keep the line from freezing, but down south I had no worries of freezing so I never added any and it built up to the point of not starting. Now resolving the issue was a completely different story, you had to drain the tank completely from the top (or under the air filter housing, the water had weakened the fuel pump so we replaced it too), then put good gas into the tank along with a bottle of dry gas (Heet), then one person squirts a continual tiny amount of starting fluid into the throat as another person  slowly revs the engine cold, from 0 up to 6000  rpm to clear the contaminate from the loop, and then drive the car to remove more. Now this my friends is enough to kill just about any motor easy, unless you did have the proper lubrication already in place because the starting fluid is dry and you are racing the engine to clear it of contaminates.

Now just the point of this alone was enough to convince me that I have to eventually get back to the diesels of yesteryear and make good on that engine before I trust another company designer or computer to cost me a vehicle that won't last any  less than 30 years or 1,000,000 miles.
 Now today the car is fine and has more power and runs cooler than ever before, but it's the thought of the design which will make me sell this car down the road. I know it runs cooler because i did the gauges and the chart of mph-vs- temp before all this,  and now it runs 15 degrees cooler in all situations. The fuel loop when circulating fuel seems to cool the oil right at the hottest point of circulation, but when storing water only increases the oil at the same location.
My recommendation is to avoid the dealer at all cost. Even though he is a jolly fellow at the point of sale, behind closed doors, he lies and wants to you to come back for continual lackluster service, and another car soon after you have paid off the first one. And it was designed that way unfortunately. A rinse and repeat scenario if I ever saw one. Good luck

Turning The Front Brake Disks

I had a long trip planned and before I did that I wanted to smooth out the brakes at high speed, since I had never done this before and knew the tires were balanced, I didn't expect any problems with the auto parts store, and none were encountered. First I went to the O'reily's auto parts storse and made certain that their machine was in working order. They wanted $8 a disk, and about one hour of machining needed. I took the car over the folks so I had a ride to the store, and followed the procedure to replace the brake pads. Once I removed them I hung the calipers with a bungy so the brake line would not strain itself. Then with a rather large phillips screwdriver (one with a 10mm wrench option for more torque) I broke loose the 2 screws holding the disk to the hub and removed the disks. Once back on the difference was very noticeable and after 2500 hard and fast miles, this job was well worth it.

You can't see much here, but the feel is what counts after all, and it's got that  brand new car feel to it now again.

Air Conditioning Tips

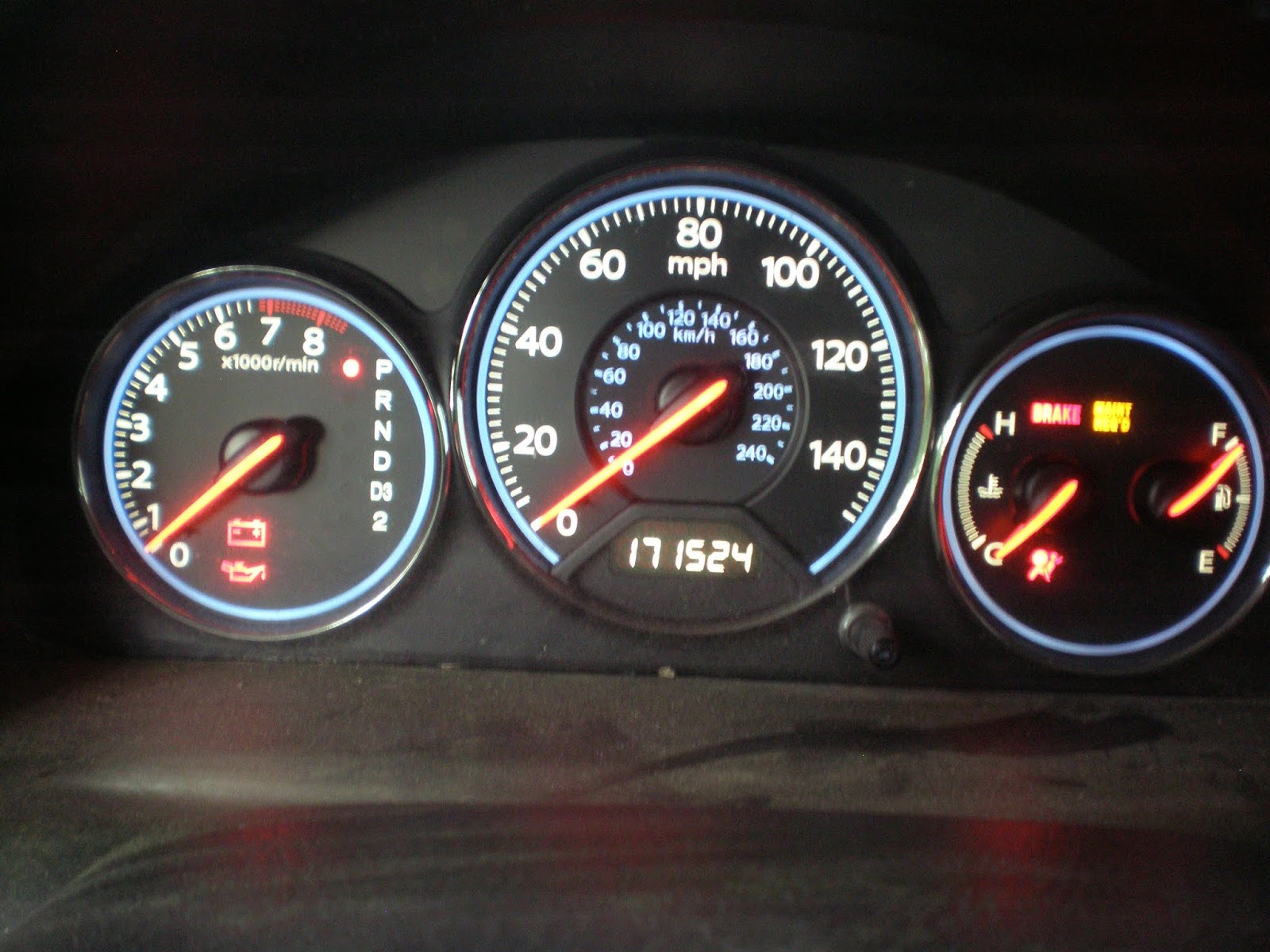

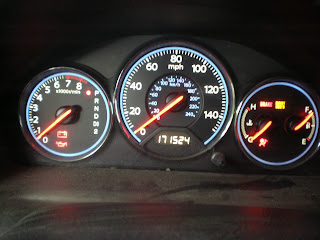

Passed a milestone today,  which normally I would simply show and give the latest figures as to the costs per day and per mile.

But when I tested the a/c for the first time this year, it had nothing, which is rare cause I've had to add a small of freon  the past few years to get the super chill back, but even then I had something.

So I went under the hood and removed the low end cap to hear it leaking from the valve. My refill kit had rusted thru so I hit up the walmart and get a gauge and freon (with lubricant, and NOT SYNTHETIC). Put him on the meter and he's pretty low for some reason, i'm slightly concerned about the leaking but my bicycle valve stem tool is not big enough to see if someone loosened up the thing and maybe that's why he's leaking. I put enough in to get half way thru the green zone, the added pressure stops the leaking valve, and do a road test. It works okay but when I stop the car, the cooling also stops. So knowing that a chain is only as strong as it's weakest link, I turn my attention to a/c radiator which has never been cleaned in 10 years.

I find the part behind the bumper is clean as a whistle but the bottom working half is slightly dirty. I check around the web to find a guy who simply uses purple power to remove the bugs and grime which accumulates in the radiator.

I have an old spray bottle hanging around cause I don't throw everything away just for this reason. Right off the bat I see the brown foam coming out the front of the radiator so I keep at it liberally concentrating on the dirtier bottom half. Then I hit it hard with the hose until I see clean water dropping down. I retest that sucker and I want to tell you something, I can't recall it ever being that cold, and the freon and gauge was about $33 and the gal of purple was under $5, so i'm once again considering myself lucky to have skirted the auto shop again, at a rather low cost for the comfort of driving down south in summer. Other than that the car been haulin the mail big time, when ever and for what ever  reason I need it to do.
